The CHIRON Group has reaffirmed its focus on precision manufacturing and future-ready production technologies with an enhanced portfolio for highly dynamic micromachining. As demand grows for precision components produced in short cycle times and within micrometer-level tolerances, the company is strengthening its offerings in this specialized segment.
CHIRON now offers two dedicated solutions for these advanced requirements: the established Micro5 and the newly introduced Micro5 XL, which broadens the scope of applications and delivers greater flexibility for manufacturers working at micro-scale dimensions.
Both models set new standards in the machining of sophisticated components – for example in medical technology, precision engineering and other industries where dynamics and ultimate accuracy are essential. Key characteristic is their remarkable 5:1 ratio between the structural dimensions of the machine and the maximum workpiece size. For the Micro5, this means a milling center of 250 mm for a workpiece cubature of up to 50 mm, and with the Micro5 XL, 600 mm for the center of the machine with a maximum edge length of 120 mm. This ratio is unique, combining extreme compactness with outstanding performance.

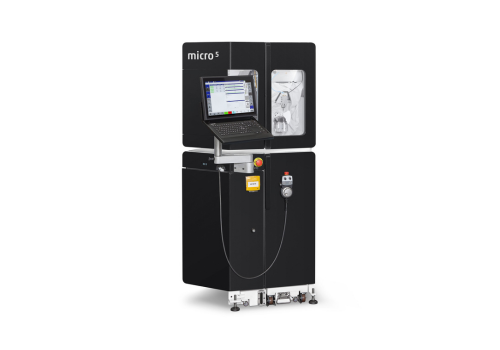

Benchmark in micromachining: the Micro5
Whether medical or watch parts, fine jewelry, or delicate components for precision and micro-mechanics, the Micro5 is the perfect choice for machining small, high-value parts. What began as a small revolution has become the most successful micro machine on the market.
Weighing just 550 kg and equipped with a 230 V connection for true “plug and play”, the Micro5 can be flexibly integrated into almost any production environment, even directly at the workstation. Despite its ultra-compact footprint, it impresses with high static and mechanical rigidity and delivers the required precision for the most demanding geometries.

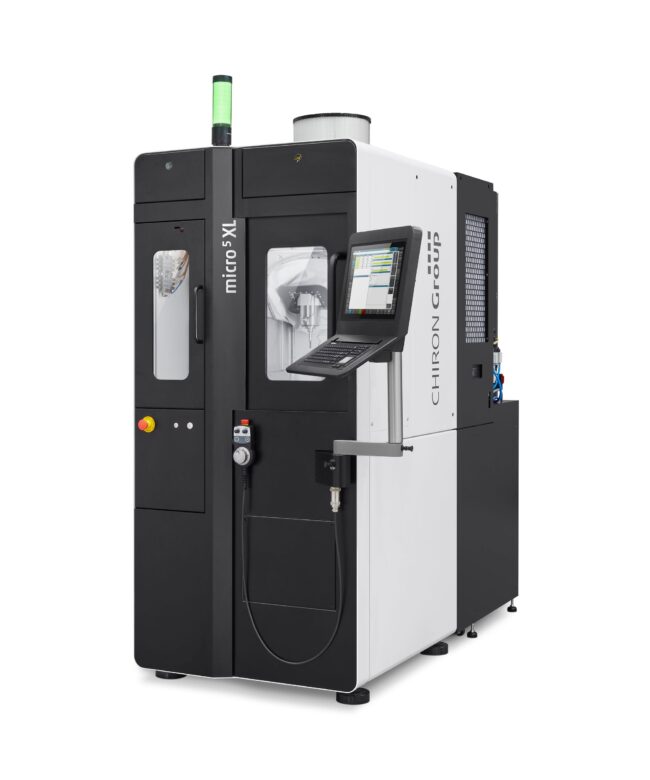

Micromachining in a new dimension: the Micro5 XL

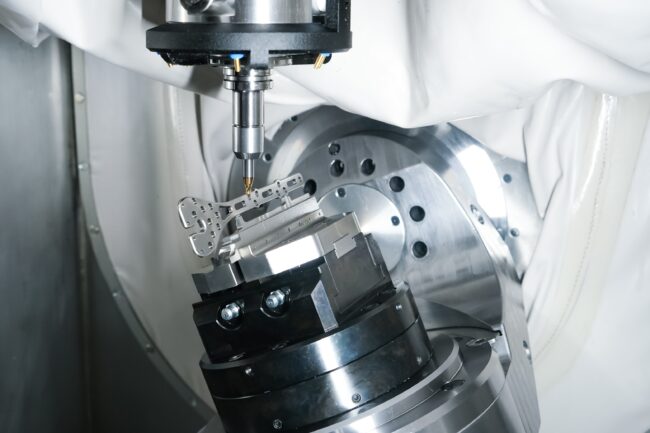

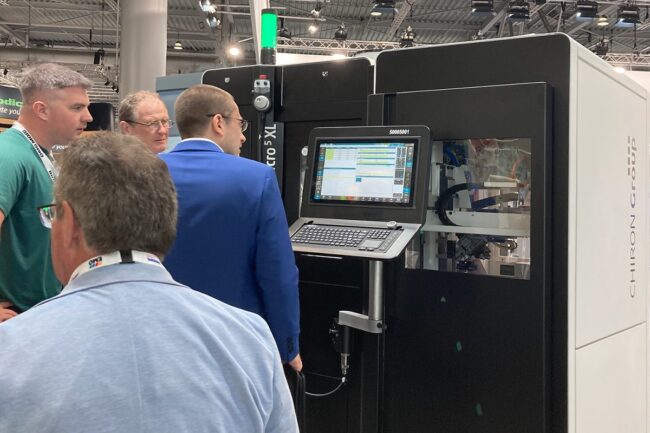

In September, the CHIRON Group launched the Micro5 XL at EMO 2025, and it was a real crowd-puller. But what, beyond the proven strengths of the Micro5, distinguishes this new micro machine from other solutions? “Why ”a new dimension”? Because XL stands for more travel distance, higher cutting performance and maximum flexibility and thus for new opportunities in 5-axis simultaneous HSC machining – for example in the production of medical products such as knee inlays or bone plates, as well as larger watch cases or bracelets.
The Micro5 XL machines cubatures of up to 120 mm on a footprint of just 1.7 m² – with highly dynamic BC 5-axis kinematics, spindle speeds of 40,000 or 50,000 rpm, and jerk values up to 900 m/s³. This enables outstanding web and processing speeds with maximum precision.
Perfectly aligned: the automation solutions
To increase productivity and autonomy in series production, the Micro5 can be combined with the Variocell UNO handling system. It loads and unloads up to two Micro5 units and serves as a fully automated handler for workpieces and tools. It offers storage capacity for up to ten pallets, and tool changes are completed in less than five seconds.
For the Micro5 XL, the CHIRON Group offers three variants for a productive combination: pallet automation, and two types of workpiece automation – either with robots or, in the case of the new Variocell PICK&PLACE, with linear handling. The system feeds raw parts from the pallet storage into the clamping device and places finished components back into the storage unit. A key advantage is the identical operating logic, which ensures intuitive handling and quick setup. Operation is from the front, with a clear view of the machining process, and multiple production cells can be positioned in close succession – production can simply grow with demand.
