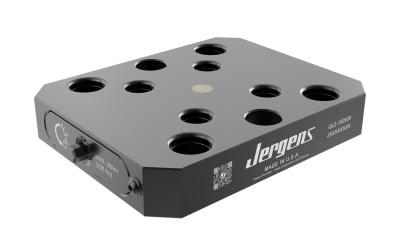

Jergens Quick-Loc™ is a modular quick-change system that enables users to perform fast and repeatable fixture changes. It supports the interchange of various types of top tooling on base receivers. The system is built around a 4-pull stud interface configured in either a 52mm or 96mm grid pattern. Top tooling is both located and clamped to the base receiver in a single step—by inserting the pull studs into the receiver and tightening the clamping screw.
Features, Benefits, & Product Specifications:
- Compatible with 52mm or 96mm top tooling
- Material & Finish: Thru-Hardened Alloy Steel, Jergens M-Coat
- Repeatability: 0.0003” (0.008mm)
- Floating and opposing clamping wedge assembly
- Sealed wedge bodies
- Acme threaded screw for increased strength and long life
- O-ring lifters for positive separation of top tooling
- Versatile standard mounting options
- Made in U.S.A.
- Patented design
