Tungaloy Corporation has announced the expansion of its TungMeister series with the introduction of new small-diameter VFM heads for face milling on automatic lathes.
Small-diameter solid end mills with diameters of ø12 mm or less are commonly used for face milling small parts on automatic lathes and similar machines. However, using solid end mills for face milling relies on the bottom cutting edge, which often results in lower surface finish. In addition, excessive overhang can lead to chatter, making it difficult to improve machining efficiency.
The new development addresses the growing demand for tools that can deliver both improved surface quality and higher machining efficiency when face milling small components or working in confined areas.

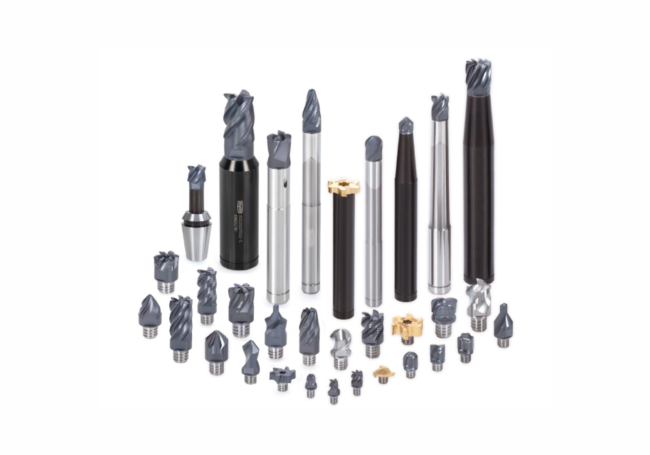

“TungMeister” is an innovative head-exchangeable end mill series; by combining more than 45 different machining heads with various shank types, it can be configured in over 13,000 different ways. This time, the lineup of VFM-type heads for face milling is being expanded, making the series capable of covering an even wider range of end-milling applications.
Benefits and Features
Feature 1: Head-exchangeable end mill that supports a wide range of machining
– With a wide range of head shapes from square and ball heads to T-slot and thread-cutting heads—this series accommodates a diverse array of end milling applications
– Optimal tool selection is possible through combinations with a wide variety of shank options, including different diameters, lengths, and materials
– Tool change time is reduced to about one-tenth that of conventional solid end mills, significantly reducing machine downtime

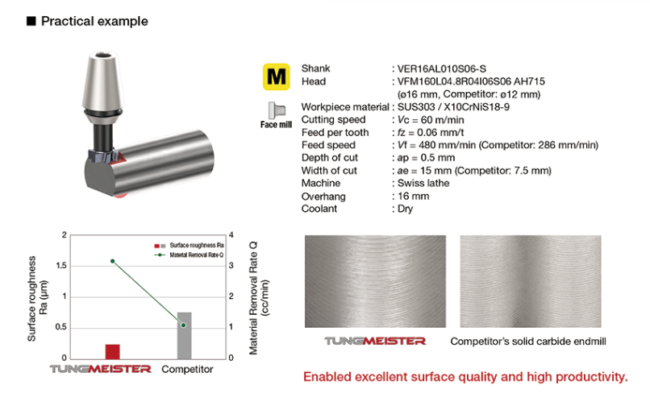

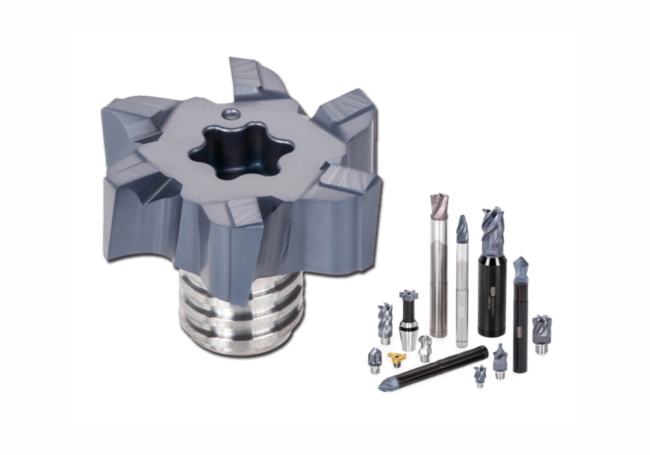

Addition of a ø10 mm tool diameter to the VFM-type head for face milling
– High-quality machined surfaces are achieved thanks to the rake-angle design
– High-efficiency machining is possible even with a 6-flute design on a 10 mm diameter tool
– The use of the AH715 PVD coating grade, which offers an excellent balance of wear resistance and chip resistance, ensures a stable, long service life across a wide range of workpiece materials.
